| Specifications: | |
| Model Number | CAT6LSZH-305-P |
| Material | Bare Copper |
| American Wire Gauge | 23AWG |
| Insulation | |
| Material | HDPE |
| Min. Average Thickness | 0.18mm(0.007") |
| Diameter | 0.9 mm ± 0.08 mm(0.035"± 0.0031") |

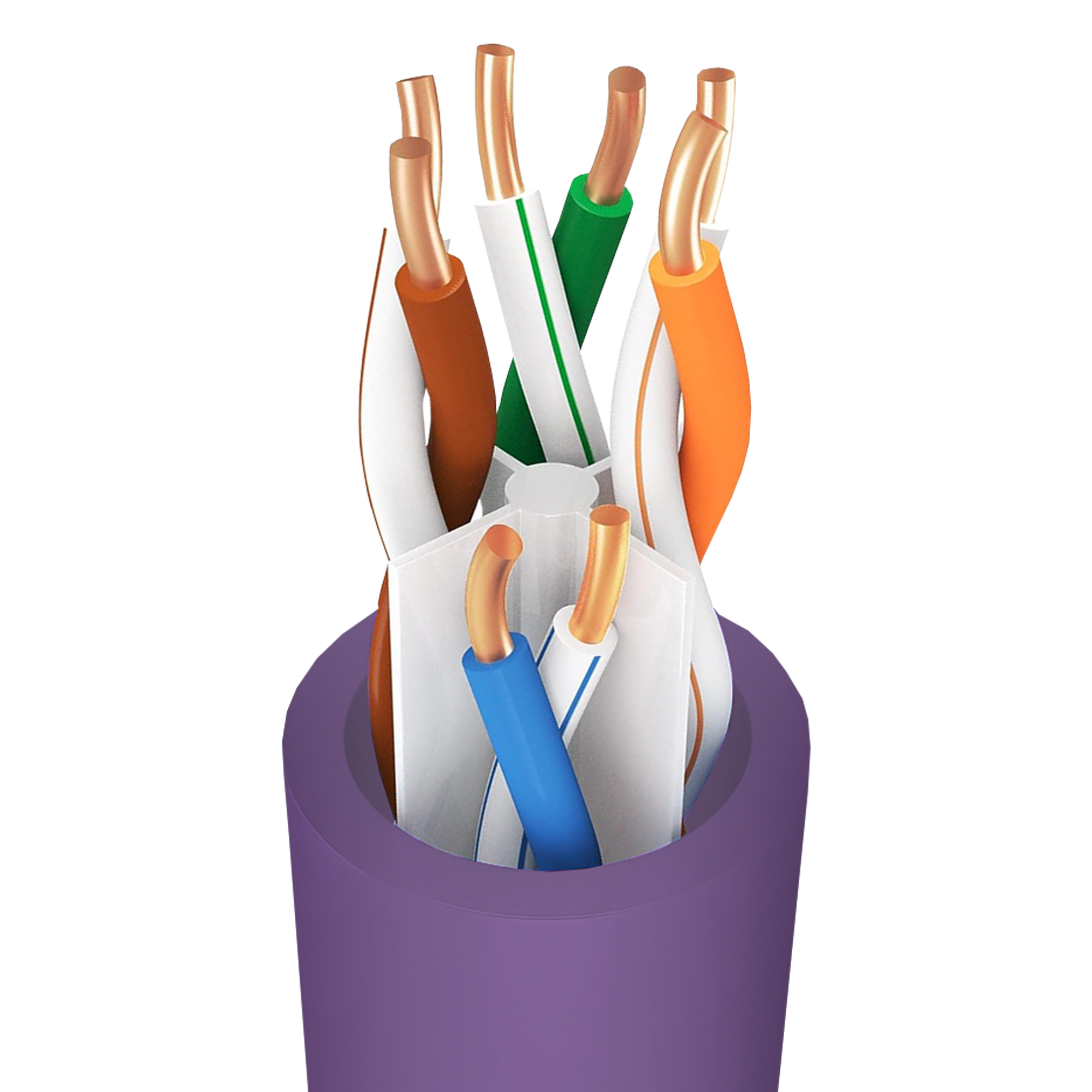

| Colour | 8-core, Blue, white/blue; orange, white/orange; green,
white/green; brown, white/brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 250D |
| Sheath | |
| Material | LSZH |
| Min. Average Thickness | 0.54±0.03mm (0.022”±0.0011") |
| Diameter | 5.8 mm ± 0.2mm(0.24"± 0.011") |
| Colour | Purple |
| Reaction to Fire | Eca |
| Electrical | |
| Max. DC Resistance of a Single Conductor @20°C | < 87Ω/Km |
| Min. Insulation Resistance | ≥50MΩ·km/DC500V |
| Dielectric Strength | No breakdown with 1KV DC for 1 min |
| Transmission | |
| Characteristic Impedance | 100 ± 15Ω |
| Mechanical | |
| Installation Bending Radius | >8 times of outer cable diameter |
| Conductor Elongation at Break | ≥15% |
| Environmental | |
| Shrinkage of Insulation | ≤5% |
| Colour Migration Resistance of Insulation | No migration |
| Low Temperature Bending Test | No cracking after the test |
| Heat Shock Test | No cracking after the test |
| Operation Temperature | –10°C to +60°C (14°F to 140°F) |
| Installation Temperature | –5°C to +50°C (23°F to 122°F) |
| Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) |

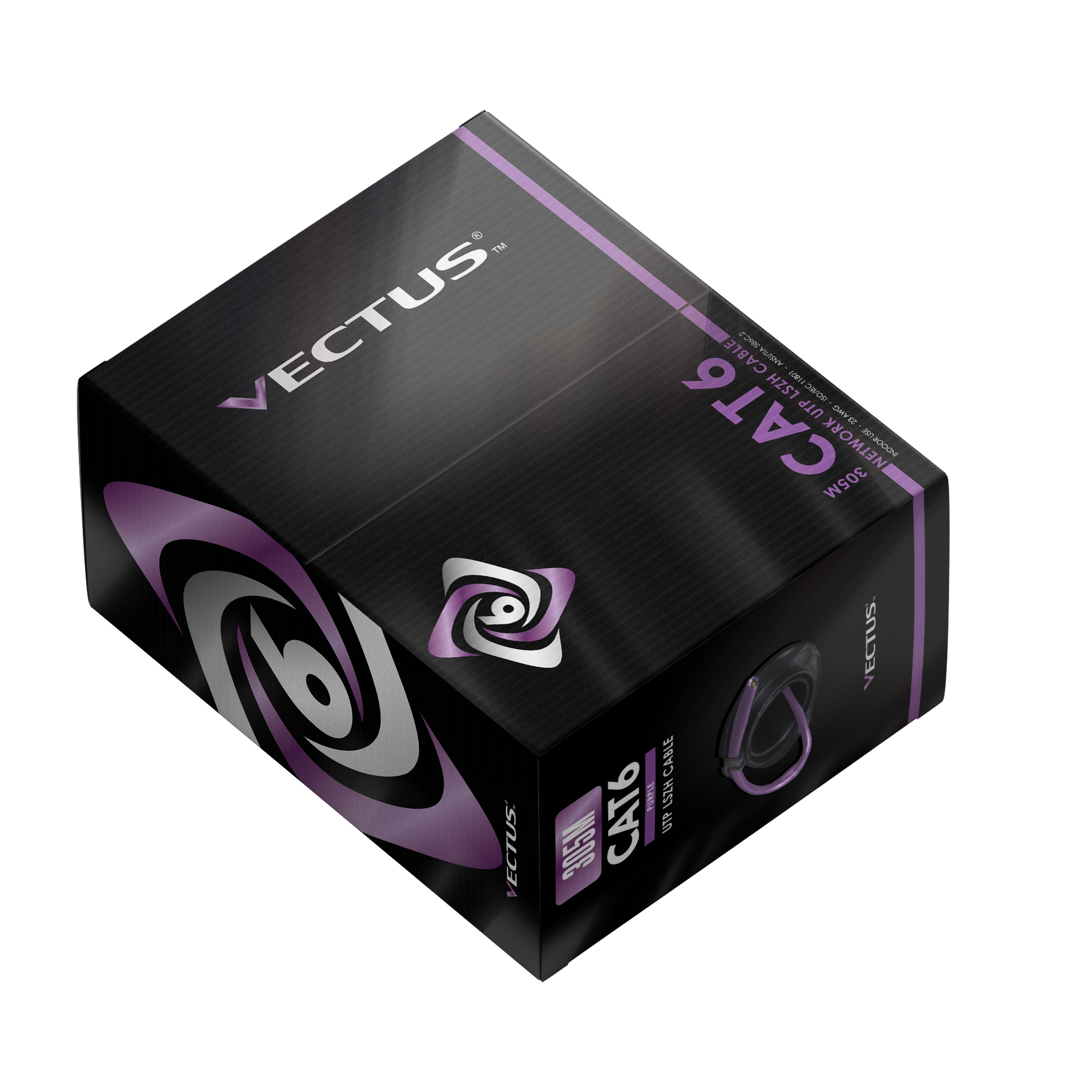

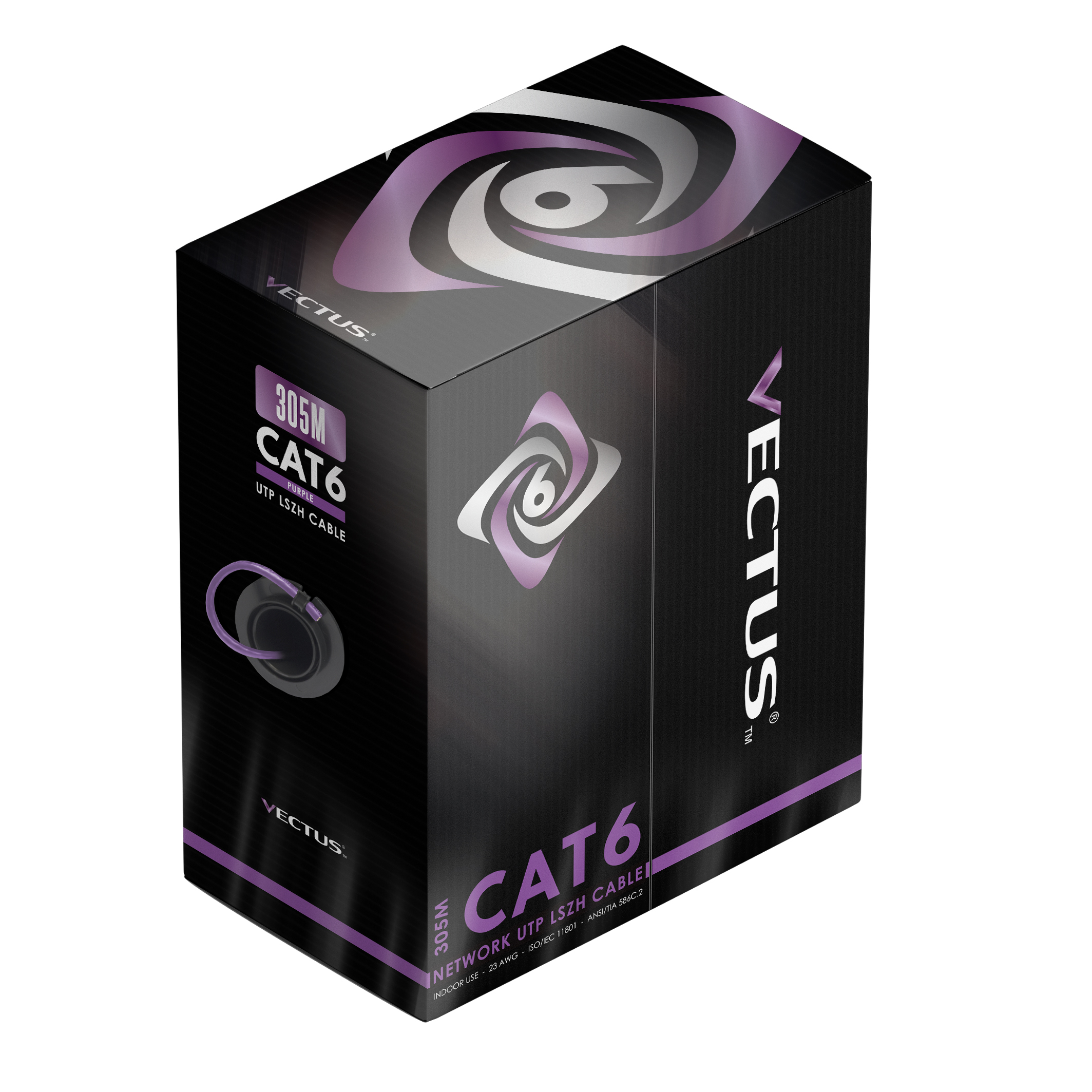

| Packaging | |
| Length | 305m (1000.66 ft) ± 1.5 m (4.92 ft) |
| Packaging Dimensions | 380mm × 380mm × 200mm (15.35" × 15.35" ×9.05") (L × W × H) |
| Net Weight | 10.7kg±0.6kg (22 lb±1.32lb) |
| Gross Weight | 11.7kg±0.6kg (24.20 lb±1.32lb) |
| Executive Standard | |
| Executive Standard | EN50575:2014+A1:2016 EN IEC62368-1:2020+A11:2020 ISO/IEC 11801；
ANSI/TIA 568-C.2 |
