| Specifications: | |

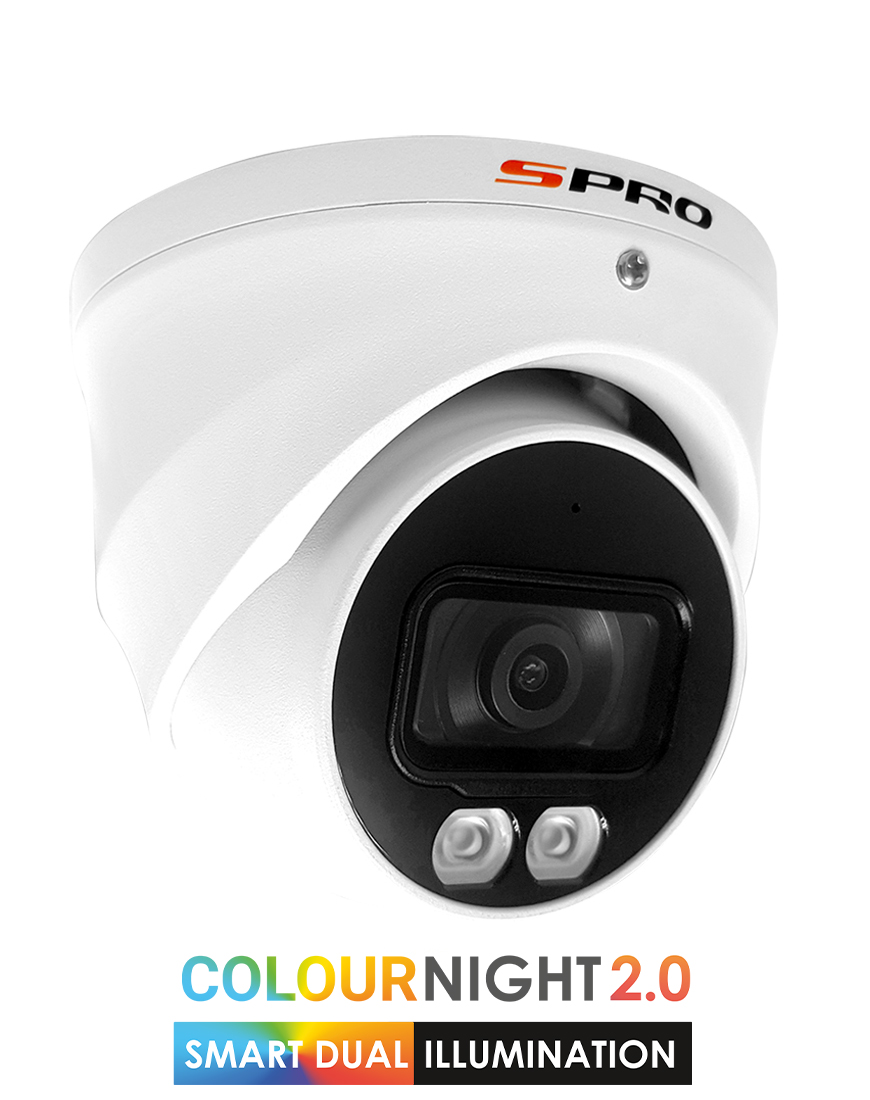

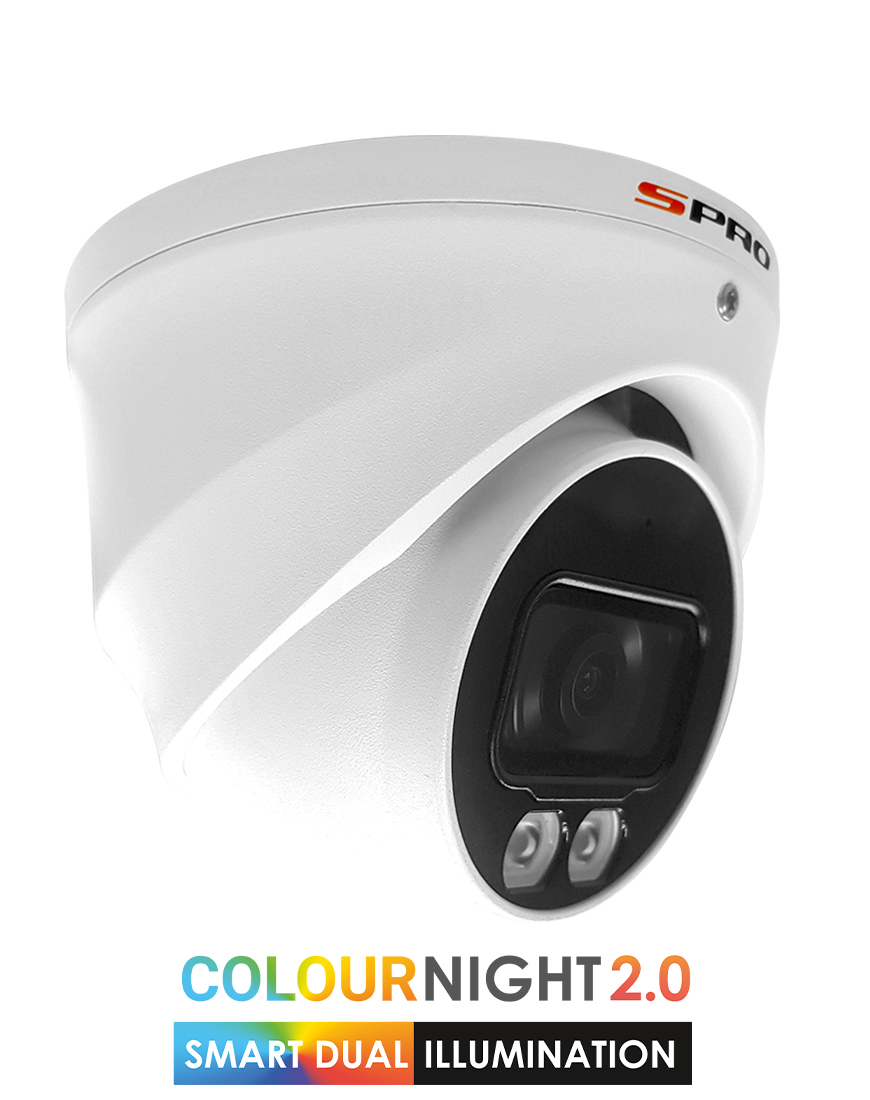

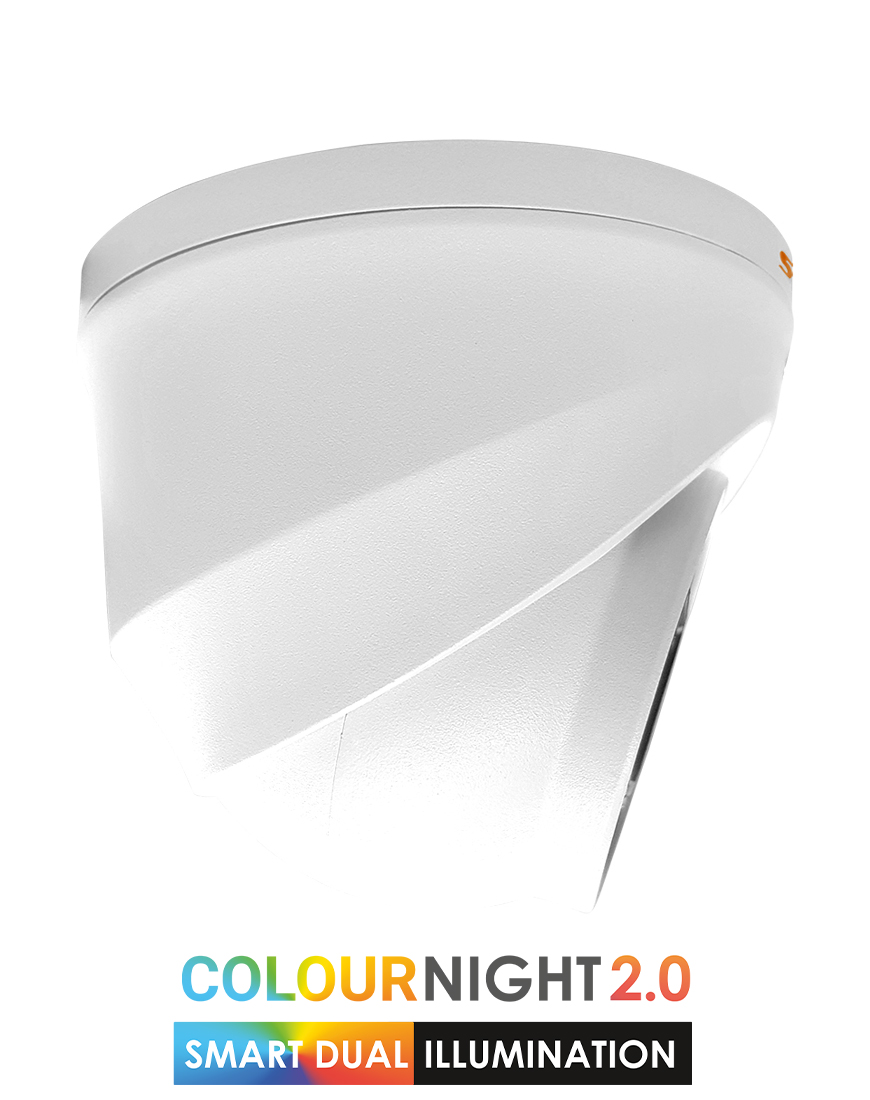

| Model Number | DHD80/28LRW-4-M |
| Camera | |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.01 lux@F2.0 (Colour, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on) |
| Illumination Distance | IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 (Warm light); 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft)
|
DORI
Distance | Lens: 2.8mm
Detect: 84.8 m (278.22 ft)
Observe: 33.9 m (111.22 ft)
Recognise: 17.0 m (55.77 ft)
Identify: 8.5 m (27.89 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD: PAL: 4K@15 fps NTSC: 4K@15 fps TVI: PAL: 4K@15 fps
NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day / Night | Auto(ICR)/Colour/B/W |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto; Area white balance |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR & WL; WL Mode; IR Mode |
| Defog | Electronic defog |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in MIC |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 5.7 W (12 VDC, LED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Low |
| Certification | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | φ106.0 mm × 99.2 mm (φ4.17" × 3.91") |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.69 kg (1.52 lb) |
