5 Button Module

5 Button Module
  Zoom
 5 Button Module5 Button Module

Availability



In stock, immediate despatch

Part Number:  VI-MODULE02-B-5

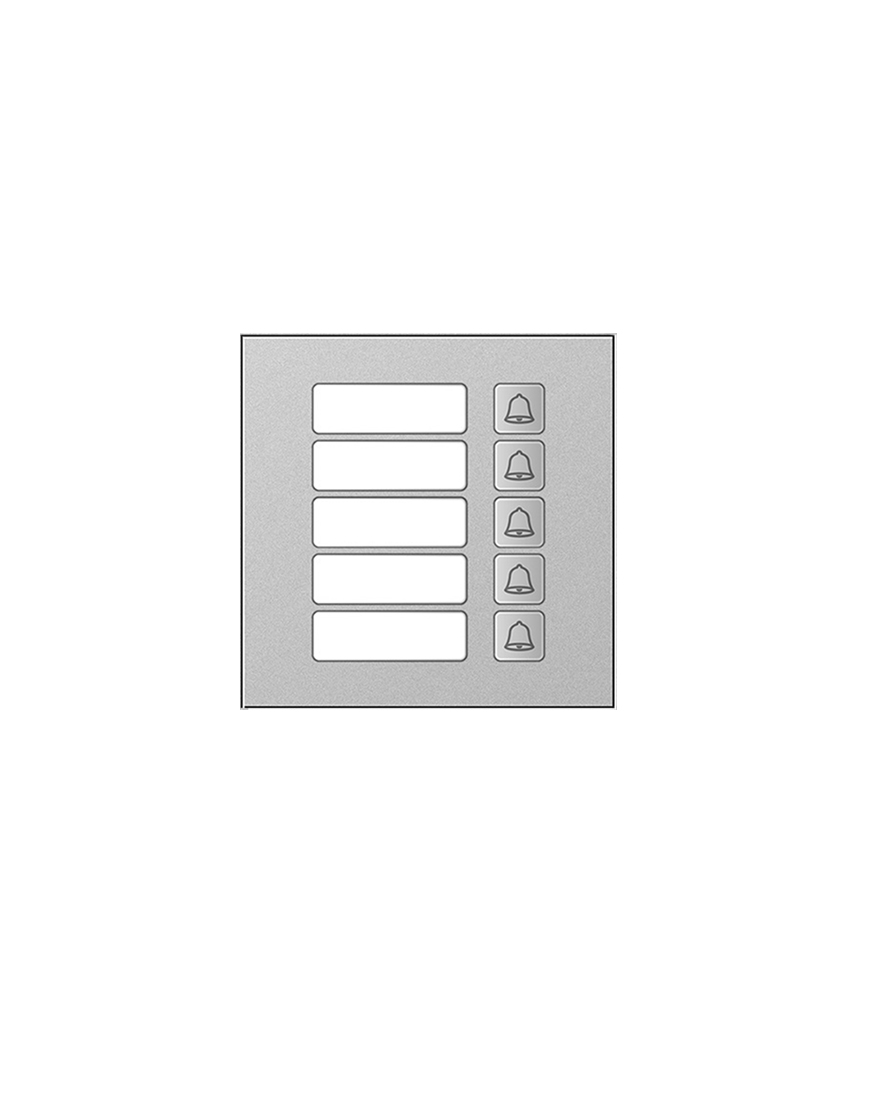

Streamlined 100x100x31mm module featuring five distinct buttons, each with a clear bell icon. Designed for easy integration and powered by the VI-MODULE02-A unit. This 5 button Module provides a quick shortcut to individual offices / apartments.

Specifications:
Model Number VI-MODULE02-B-5
System
Main Processor Embedded MCU processor
Button
Button Type Mechanical button
Port
Power Output Port 5V DC (Provide power for other modules)
Regular
Power Supply Mode 5V DC (Provided with power by other modules)
color Silver
Dimensions 100mm×100mm×31mm
Protection grade IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Operating Temperature -20°C to +60°C (-4°F to +140°F )
Operating Humidity 10%RH–90%RH
Power Consumption 1W
