Digital Keypad Module

Digital Keypad Module
 Digital Keypad ModuleDigital Keypad Module



In stock, immediate despatch

Part Number:  VI-MODULE02-C

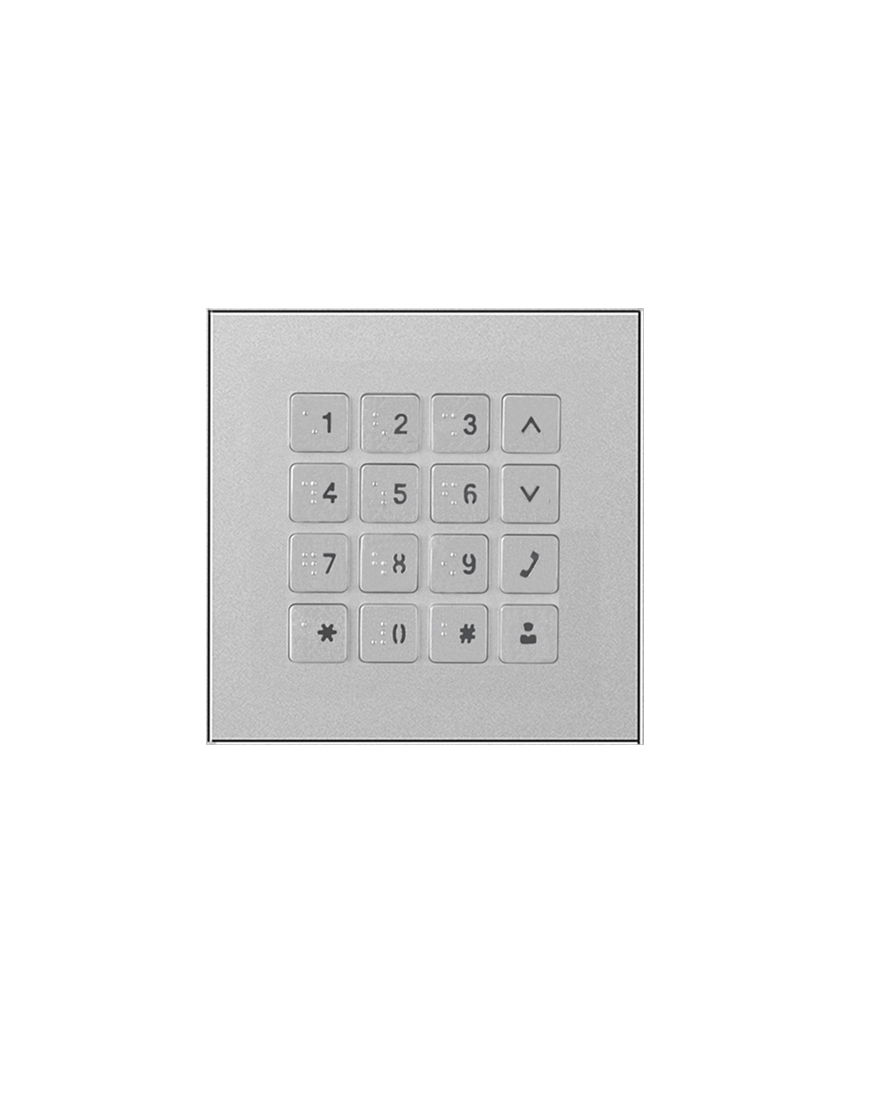

This 100x100x31mm module showcases a sleek digital keypad layout with clearly marked numbers and symbols for easy input. Featuring a special 'trade' button to allow timed access for contractor entry.  it optimally draws power from the VI-MODULE02-A unit.

Model Number VI-MODULE02-C
Main Processor Embedded MCU processor
Button Type Metal backlight keyboard
Power Output Port 5V DC (Provide power for other modules)
Power Supply Mode 5V DC (Provided with power by other modules)
color Silver
Dimensions 100mm100mm31mm
Protection grade IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Operating Temperature -20C to +60C (-4F to +140F )
Operating Humidity 10%RH90%RH
Power Consumption 1W

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.
