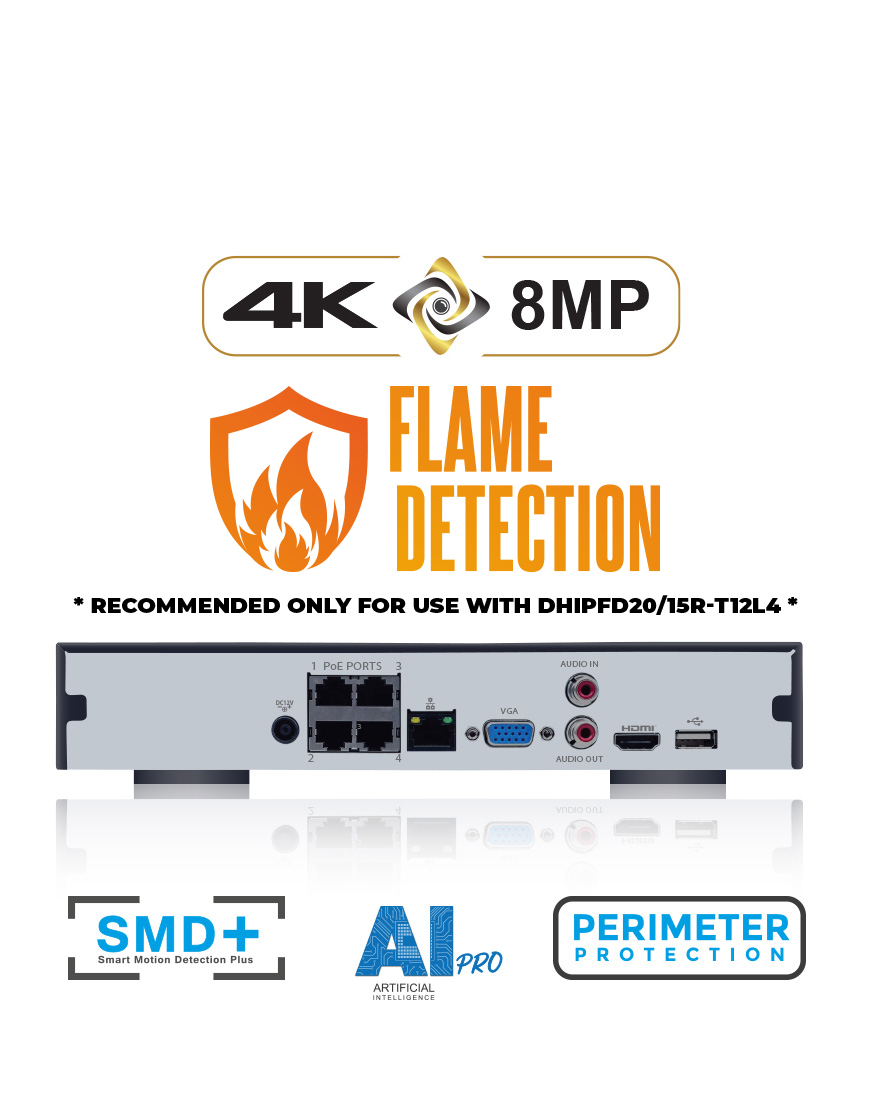

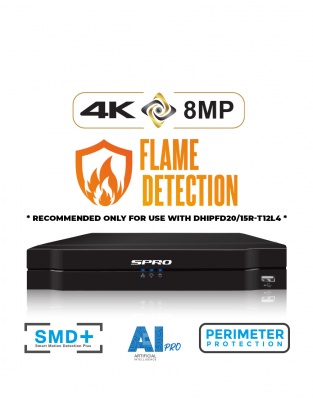

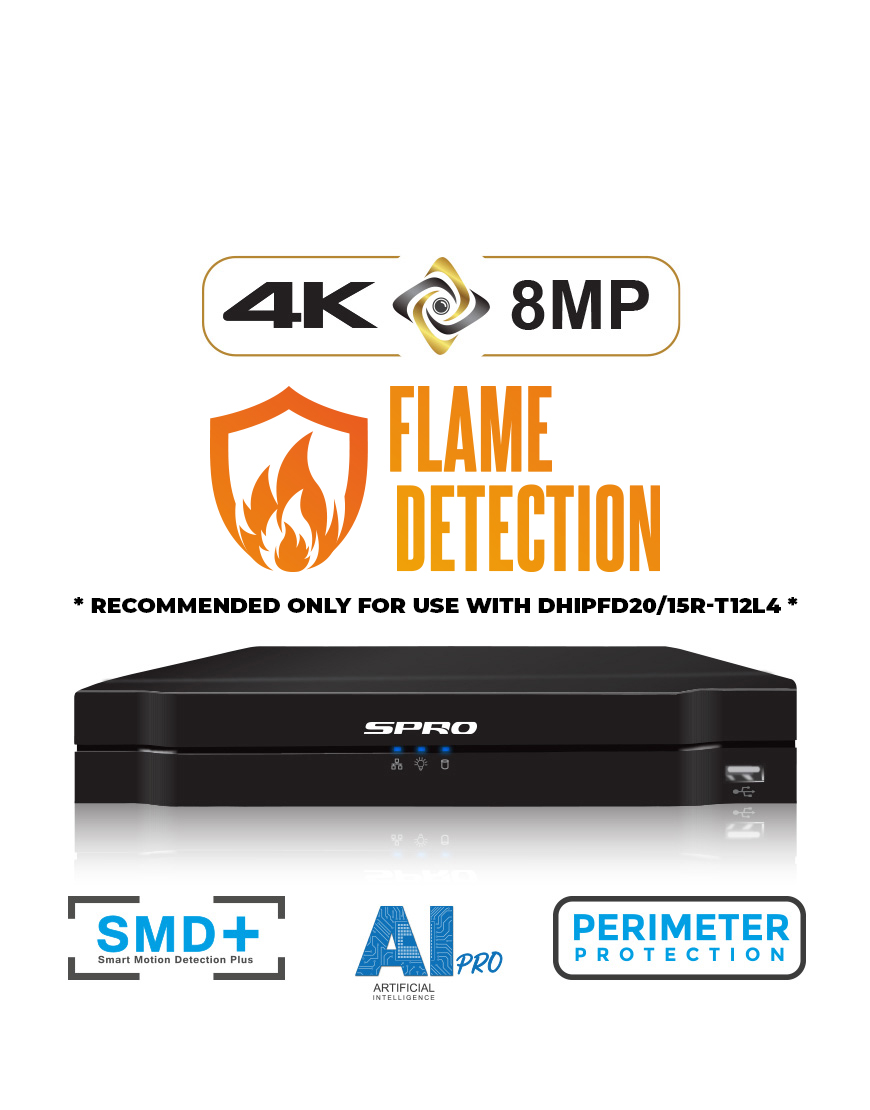

SPRO 8MP IP NVR with AI PRO Technology

SPRO 8MP IP NVR with AI PRO Technology
 SPRO 8MP IP NVR with AI PRO TechnologySPRO 8MP IP NVR with AI PRO Technology
SPRO 2MP Flame Detection Camera

Part Number:  DHIPNVR04-A6-1TB
Brand:  SPRO
Channels  4
Flame Detection  Yes
Audio over CAT5e  Yes
SMD (Smart Motion Detection)  Yes
Perimeter Protection  Yes
Face detection  Yes
Smart Dual Illumination Supported  Yes

SPRO

Enhance your security infrastructure with the SPRO 8MP IP NVR system featuring the latest AI PRO Technology. Unlock a new realm of intelligent surveillance capabilities and top-tier video recording to fortify your advanced security measures.

* Recommended only for use with DHIPFD20/15R-T12L4 *

Key Features

  • H.265 codec recording
  • Up to 8 megapixel live viewing & recording
  • 4 channel POE built in
  • Up to 80Mbps incoming bandwidth
  • P2P (no port forwarding required)
  • Smart motion detection
  • Perimeter protection
  • Intrusion & tripwire (human & vehicle classification)
  • All channels support Audio over CAT5e cable
  • Audio out (two way audio)
  • PTZ control over CAT5e cable (3D positioning)
  • Push notification
  • HDMI (4K) & VGA
Specifications:
Model Number DHIPNVR04-A6
Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web; local GUI
Perimeter Protection by Camera
Performance 4 channels
AI Search Search for pictures by channel, time and event type
Face Detection by Camera
Performance 4 channels
Face Attributes 6 attributes: Gender, age, glasses, expression, mouth mask,
and beard.
AI Search Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance 4 channels
Face Attributes Search by target classification (human, vehicle)
Video
Access Channel 4
Network Bandwidth Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability 8 × 1080p@30 fps
Video Output 1 × VGA output, 1 × HDMI output, supports simultaneous video
sources output for VGA and HDMI
Multi-screen Display 1, 4 views
Third-party Camera Access ONVIF; RTSP
Compression
Video Smart H.265/H.265/Smart H.264/H.264/MJPEG
Audio PCM/G711A/G711U/G726/AAC
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP;
DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P;
auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF (profile T/S/G); CGI; SDK
Browser Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback Up to 4 channels for playback
Record Mode Manual record; alarm recording; SMD recording; smart recording
Storage Local HDD; Network
Backup USB storage device
Playback Function 1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in,
and audio on/off
Storage
Disk Group Yes
Alarm
General Alarm Motion detection, privacy masking, video loss, scene changing,
PIR alarm, IPC external alarm
Anomaly Alarm Camera disconnection, storage error, disk full, IP conflict, MAC
conflict, login locked, and cybersecurity exception
Intelligent Alarm Face detection, perimeter protection (intrusion and tripwire), IVS,
people counting, heat map, and SMD alarms
Alarm Linkage Recording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input 1 x RCA input
Audio Output 1 x RCA output
HDD 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD
capacity varies with environment temperature
USB 2 (1 × front USB2.0; 1 × back USB2.0)
HDMI 1 (supports up to 4K resolution output)
VGA 1
Network 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE 4
General Parameter
Power Supply 48 V/53 VDC, 1.25 A/1.13 A
Power Consumption < 10 W (HDD not included, idling) Total output power of PoE is 36W,
the maximum output power of a single port is 25.5W
Net Weight 0.86 kg (1.90 lb)
Gross Weight 1.86 kg (4.10 lb)
Product Dimensions 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H)
Operating Conditions –10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 10℅~93℅
Operating Altitude 30%~85%
Installation 3000 m (9842.52 ft)
Gross Weight Desktop mounted
Certifications
Certifications CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2,
EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
