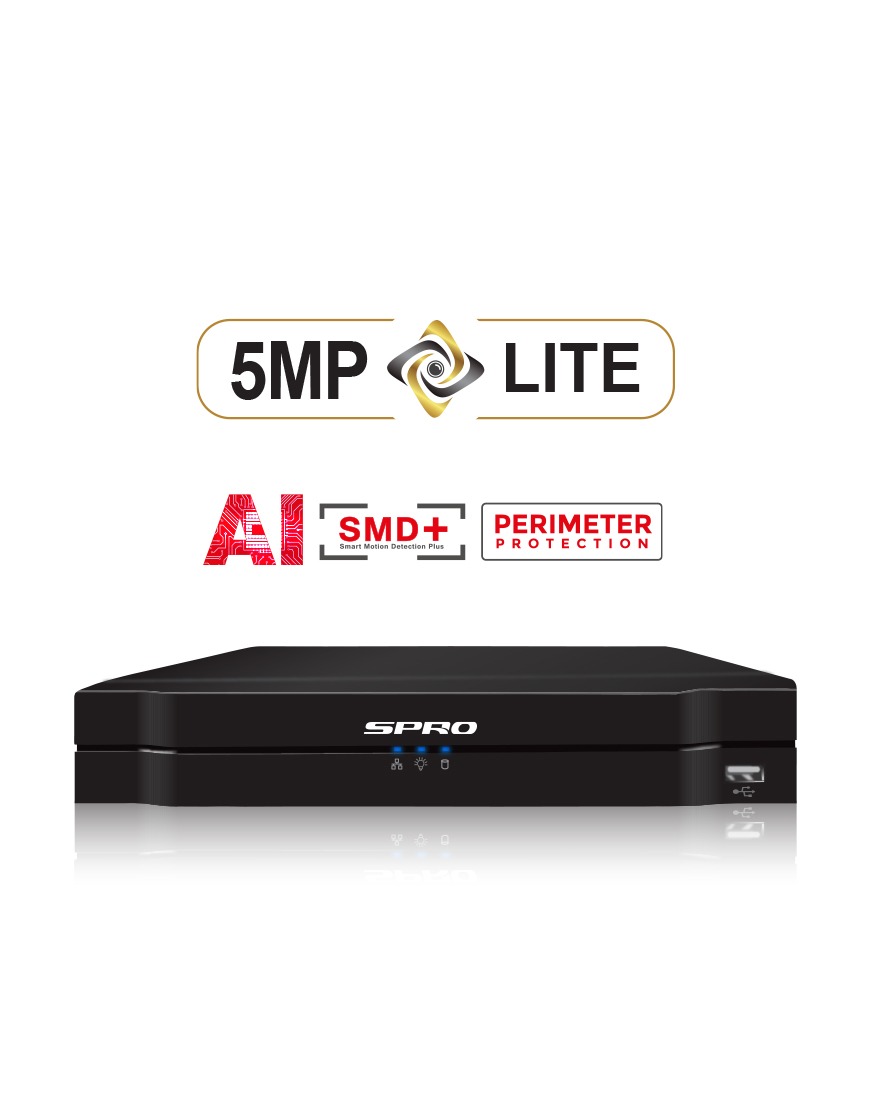

SPRO B5 5MP-Lite 8 Channels 5in1 with AI

SPRO B5 5MP-Lite 8 Channels 5in1 with AI
  Zoom
 SPRO B5 5MP-Lite 8 Channels 5in1 with AISPRO B5 5MP-Lite 8 Channels 5in1 with AI

Part Number:  DHDVR12-B5-V3-0TB
Recorder Resolution:  5MP-Lite
Audio over co-ax:  On each channel
SMD (Smart Motion Detection):  Yes
Perimeter Protection:  Yes
Tripwire:  Yes
Intrusion:  Yes
Face detection 2.0:  Yes
BNC Channels:  8 Channel
Extra IP Channels:  4 Channel

The B5 range of DVRs can record at up to 5M-N recording giving your customers better than 1080p recording. This range allows both alarm and audio over co-ax to be installed on each channel as well as giving your customers having the ability to control compatible PTZ cameras using the same BNC cable as the video. As an added bonus, each of the DVRs in the B5 range allows for additional IP cameras to be installed and they work with the audio over CAT5e feature allowing your customers to record audio on those cameras too (requires compatible cameras). As well as the extra IP channels the B5 range also accepts video signals in the CVI, TVI, AHD and CVBS formats, giving more flexibility in what cameras can be use on the installation.

Check out the SPRO video academy.

Specifications:
Model NumberDHDVR12-B5-V3
Main ProcessorEmbedded processor
Operating SystemEmbedded LINUX
Perimeter Protection
Perimeter Performance
AI by Recorder
Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection
Performance of AI
by Recorder
1 channel, (up to 8 face images/s)
Face Recognition
Face Database CapacityUp to 10 face databases and 10,000 images.
Face Recognition
Performance of AI
by Recorder
1 channel
SMD Plus
SMD Plus by Recorder8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Video & Audio
Analog Camera Input8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps,720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera InputUp to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding CapacityMain stream: All channel 5M-N (1 fps10 fps); 4M-N/1080p (1 fps15 fps);
1080N/720p/960H/ D1/CIF (1 fps25/30 fps) Sub stream: D1/CIF (1 fps15 fps)
Dual-streamYes
Video Bit Rate32 kbps6144 kbps
Audio Sampling8 kHz, 16 bit
Audio Bit Rate64 kbps
Video Output1 HDMI, 1 VGA
HDMI/VGA: 1920 1080, 1280 1024, 1280 720
Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera AccessONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video CompressionAI Coding; H.265+; H.265; H.264+; H.264
Audio CompressionG.711a; G.711u; PCM
Network
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 21.06; CGI Conformant
BrowserChrome, IE9 or later, Firefox
Network ModeSingle-address mode
Recording Playback
Record ModeGeneral, motion detection; intelligent; alarm; POS
Recording Playback1/4
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Alarm
General AlarmMotion detection, video loss, tampering
Anomaly AlarmNo disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent AlarmFace detection, face recognition, perimeter protection
Alarm LinkageRecord, snapshot (panoramic), IPC external alarm output,
access controller, voice prompt, buzzer, log, preset, email

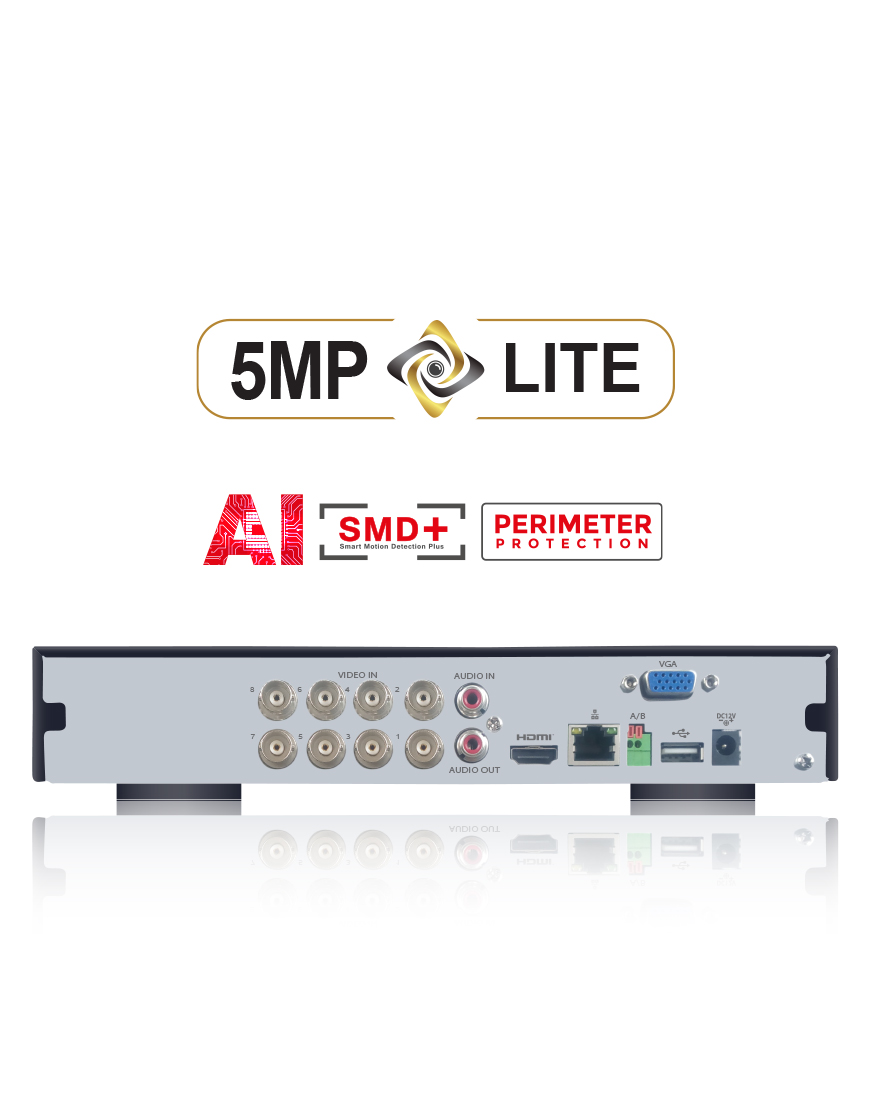

Ports
Audio Input1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output1-channel RCA
Two-way TalkYes (share the same audio input with the first channel)
HDD Interface1 SATA port, up to 16 TB. The maximum HDD capacity
varies with environment temperature.
RS-4851 port, for PTZ control
USB2 USB ports (USB 2.0)
HDMI1
VGA1
Network Port1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply12 VDC, 2 A
Power Consumption<7W (without HDD)
Net Weight1.1 kg (2.43 lb)
Gross Weight1.5 kg (3.31 lb)
DimensionsCompact 1U, 260mm × 220mm × 40mm
Operating Temperature-10°C ~+55°C / 0%~90% (RH)
