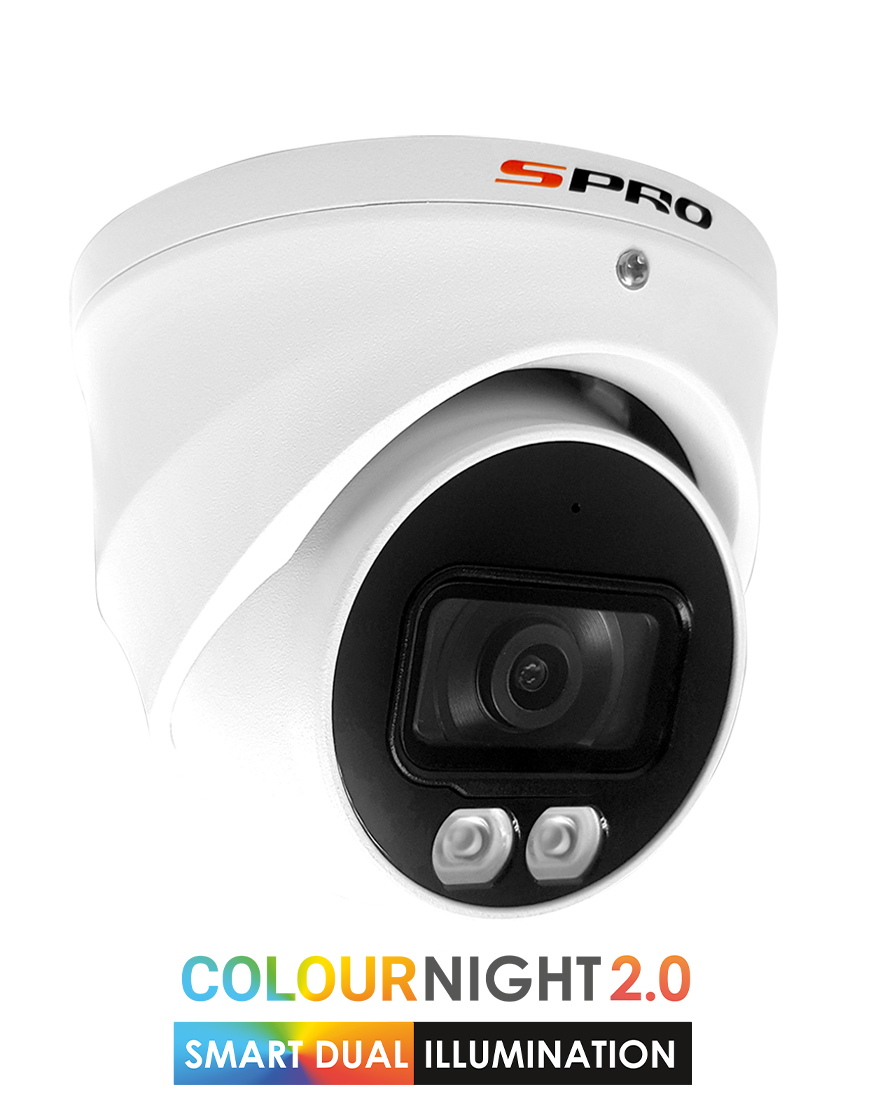

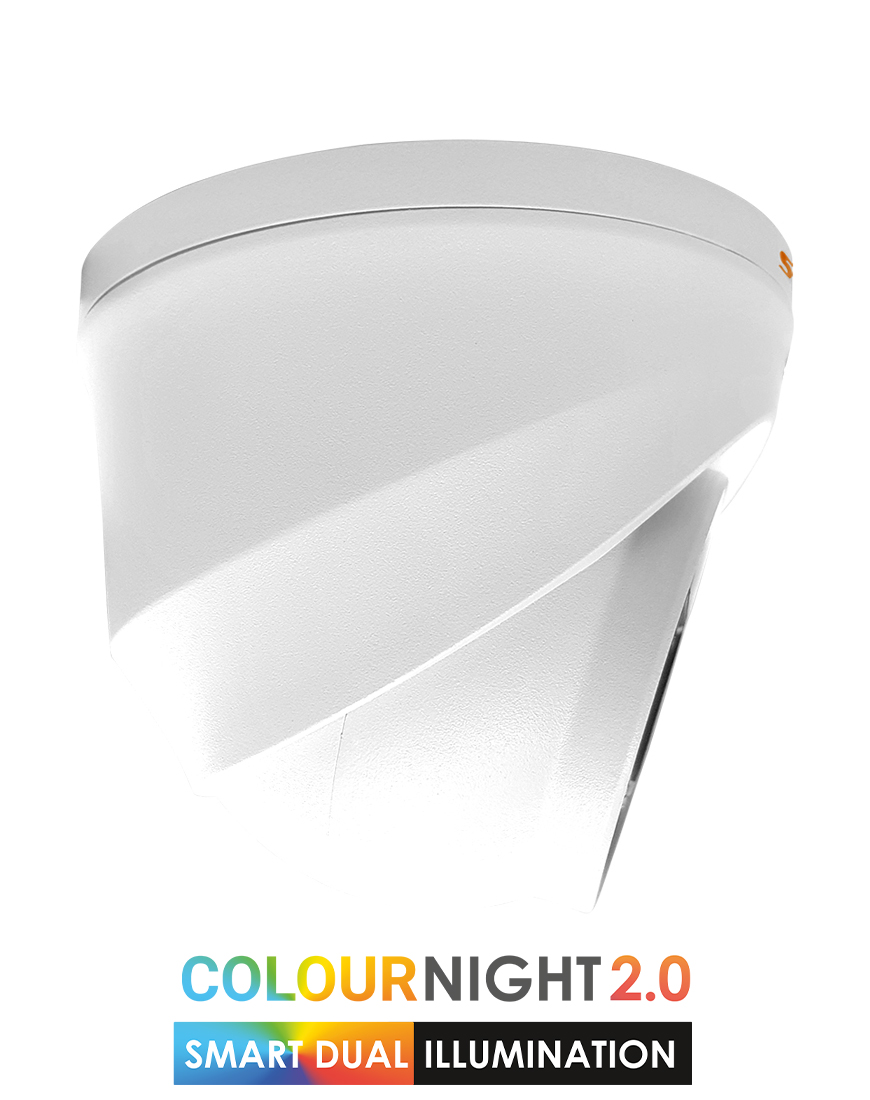

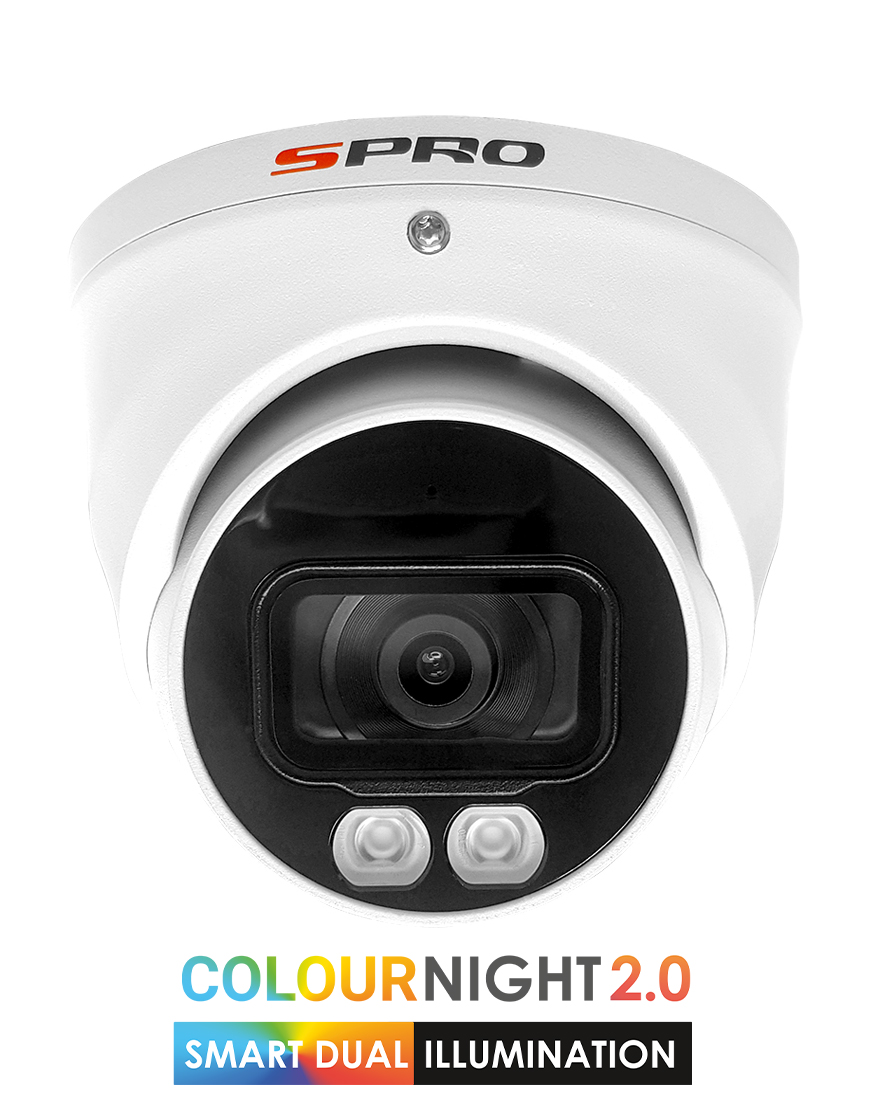

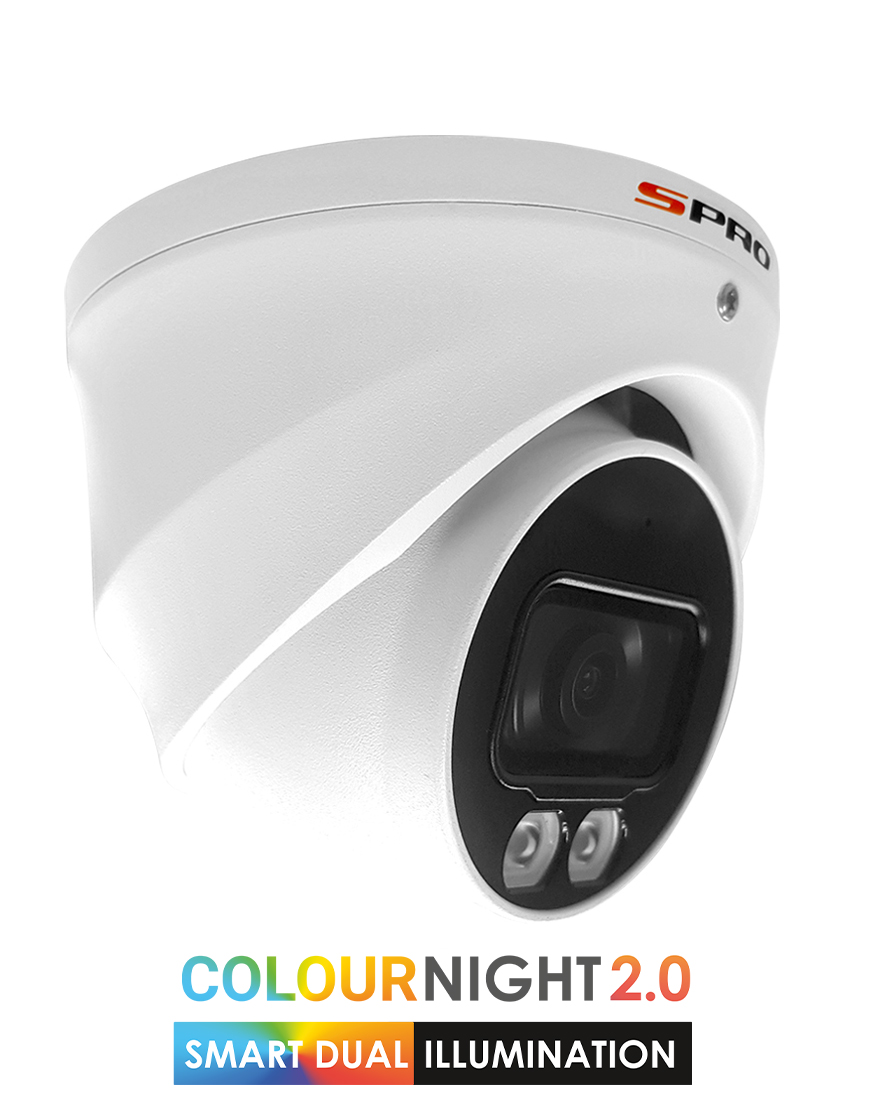

SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0

SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0
  Zoom
SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0

Availability



In stock, immediate despatch

Pole Bracket
Deep Base, White
Wall Bracket, White
Deep Base, White

Part Number:  DHD50/28LRW-4-M
Camera Resolution  5 Megapixels
Lens  Fixed Lens
IR Distance  Up to 40m IR distance
Built-in Mic.  Yes
Style  Turret

The SPRO ColourNight range of cameras are designed to allow the camera to see full colour images at night. These cameras feature white light LEDs that illuminate the scene.

The second generation SPRO ColourNight cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion - causing a security light effect. However, the cameras can still be used in the same way as the previous generation - with its white light on continuously throughout the night - if needed.

This camera is compatible with the following DVR models:

DHDVR06-B5-V3
DHDVR12-B5-V3
DHDVR24-B5-V3
DHDVR32-B5

DHDVR06-B6-V2
DHDVR12-B6
DHDVR24-B6
DHDVR24-B6-2H-V2
DHDVR32-B6



Specifications:
Model Number DHD50/28LRW-4-M
Image Sensor  5MP CMOS
Max. Resolution  2880 (H) x 1620 (V)
Pixel 5 MB
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s
Min. Illumination 0.001 lux@F1.0 (Color, 30 IRE);
0.0001 lux@F1.0 (B/W, 30 IRE);
0 lux (Illuminator on)
S/N Ratio >65dB
Illumination Distance 40 m (98.43 ft) (IR); 40 m (98.43 ft) (Warm light)
Illuminator On/Off control Auto/Manual
Illuminator Number 1 (IR LED); 1(Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Lenght 2.8mm; 3.6mm
Max. Aperture F1.0
Field of View 2.8mm:H:111° V:57° D:131°
3.6mm: H:92° V:47° D:104°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)
DORI Distance

Detect: 66.0m

Observe: 26.4m

Recognize: 13.2m

Identify: 6.6m

Video
Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps;
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps;
CVBS: PAL: 960H; NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Colour/B/W
BLC BLC/HLC/WDR/HLC-Pro
WDR 120dB
White Balance Auto; Area White Balance
Gain Control Auto; Manual
Noise Reduction 3D NR
Defog Electronic defog
Digital Zoom  4x
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Certification
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013,
EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014,
EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Video Intput One channel built-in MIC
Power
Power Supply 12 VDC ± 30%
Power consumption Max 5.7 W (12 VDC, LED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Operating Humidity < 95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (-40 °F to 140 °F)
Protection IP67
Structure
Casing Metal
Product Dimensions Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69")
Net Weight 0.49 kg (1.08lb)
Gross Weight 0.66 kg (1.46 lb)
Installation Wall mount; ceilling mount; vertical pole mount
